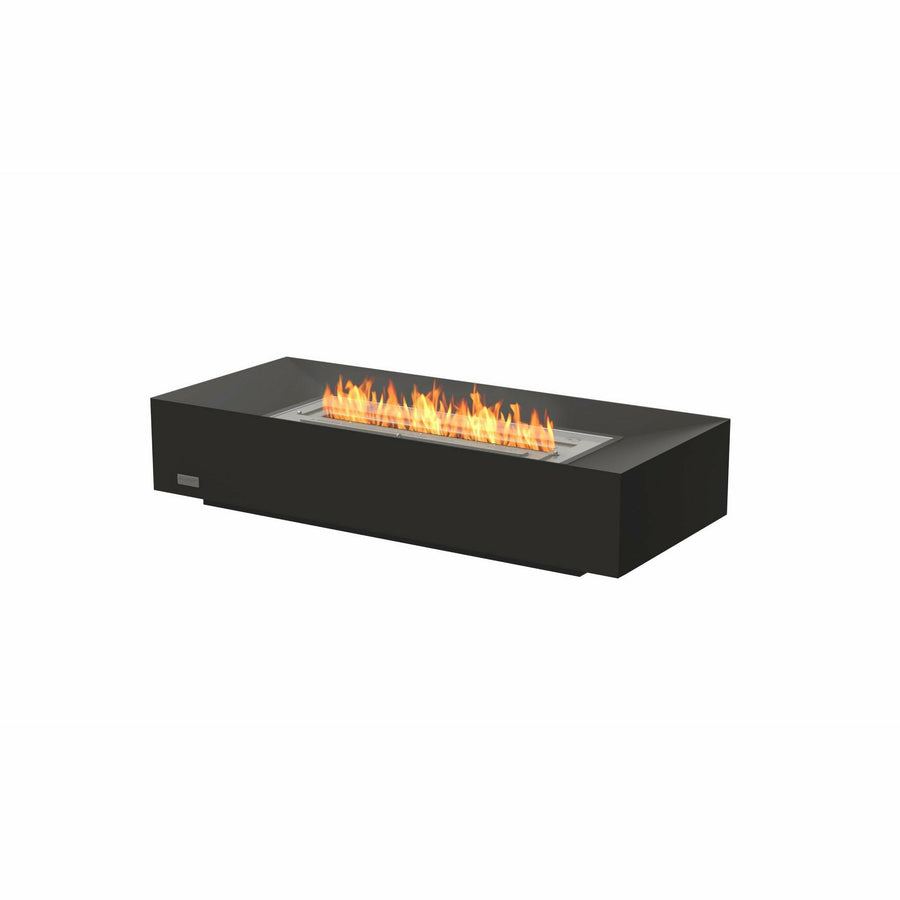

Grate 18 makes transforming a traditional wood fireplace into a contemporary, eco-friendly ethanol fireplace so simple.
Fireplace Grate 30 is designed to complement conventional hearths and custom spaces.
Grate 36’s bold appearance and long elegant flame make it the ideal choice for bringing life back to an old unused fireplace.
| Sizes |
18" |
30" |
36" |
| Capacity: |
2.1 Gal [8 L] |
1.3 Gal [5 L] |
1.8 Gal [7 L] |
| Heats on Average: |
646ft2 [60m2] |
431ft2 [40m2]
|
538ft2 [50m2]
|
| Minimum Room: |
4097ft3 [116m3] |
2825ft3 [80m3]
|
3178ft3 [90m3]
|
| Burn Time: |
7 - 11h |
10 - 13 h |
9-12h |
| Thermal Output: |
21.56 MJ/h - 20433 BTU/h - 6 kW |
12 MJ/h - 11430 BTU/h - 3.4 kW |
14.50 MJ/h - 13650 BTU/h - 4 kW |
| Operating Costs: |
$1.50 - $3.50 / Hour |
|
|
Specifications
| Manufacturer |
EcoSmart Fire 18/30/36 |
| Weight |
36.16lb / 41.23lb / 51.59lb
|
| Length |
18" / 30" / 36" |
| Width |
16" / 13" / 13" |
Height
|
7.9" / 6.1" / 6.1" |
| Application |
Indoor |
| Materials |
Concrete Composite, Stainless Steel Grade 304 |
