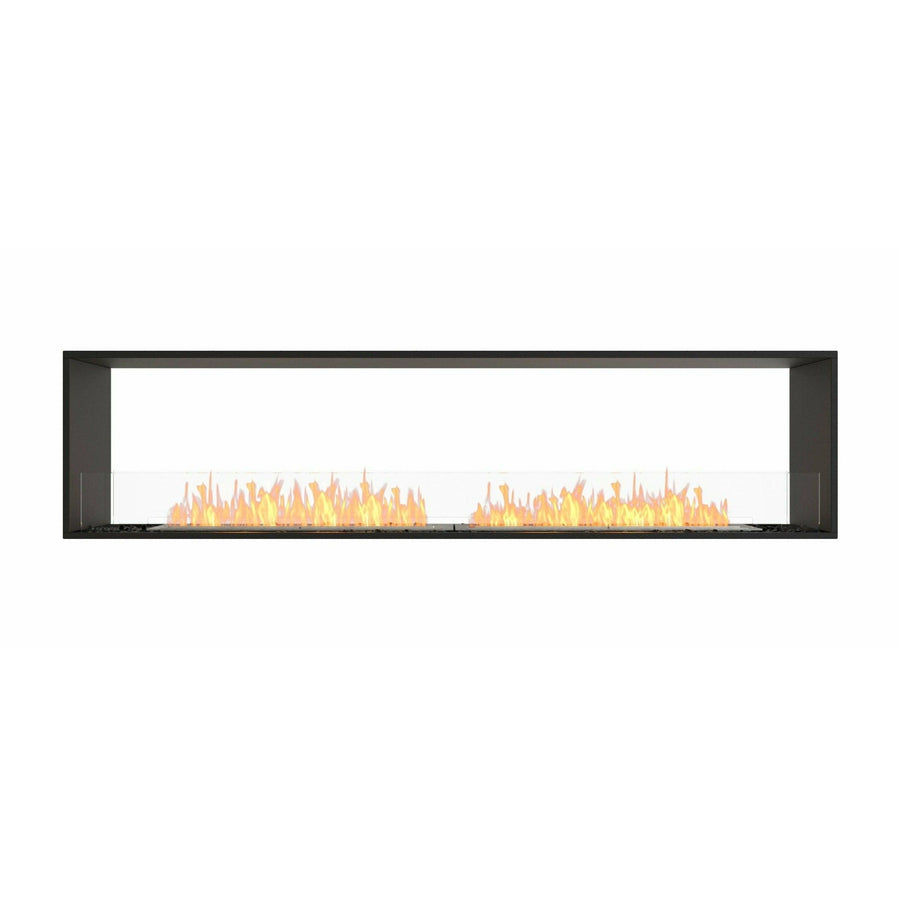

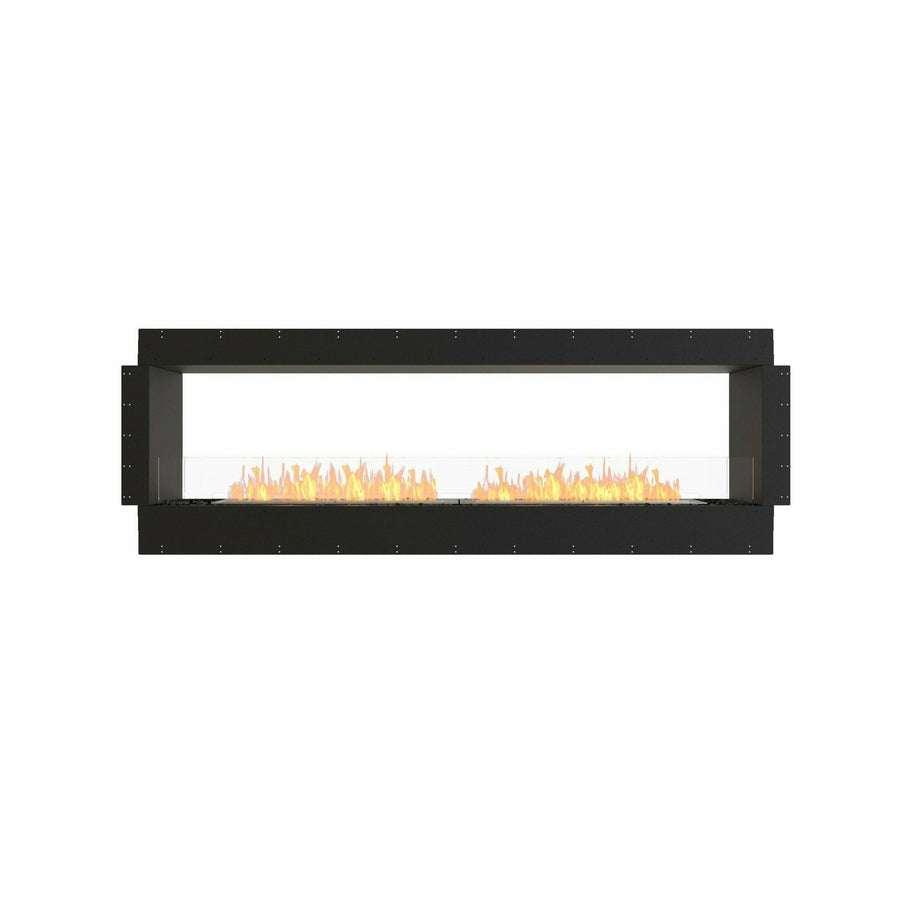

With two open sides, Flex Double Sided fireplace insert creates the perfect room divider. The see-through design provides unobstructed views of the flickering flame from the front and the back, infusing warmth and ambiance into two adjacent rooms.
The clean lines and 'all flame' configuration of the Flex 86DB means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

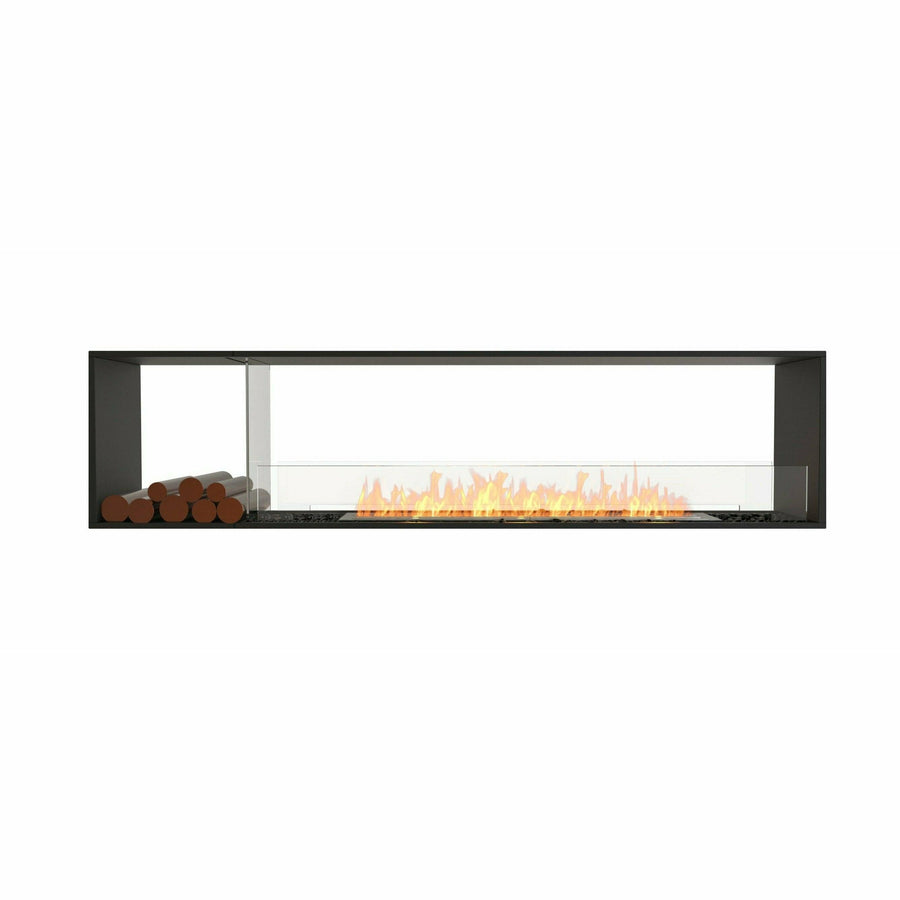

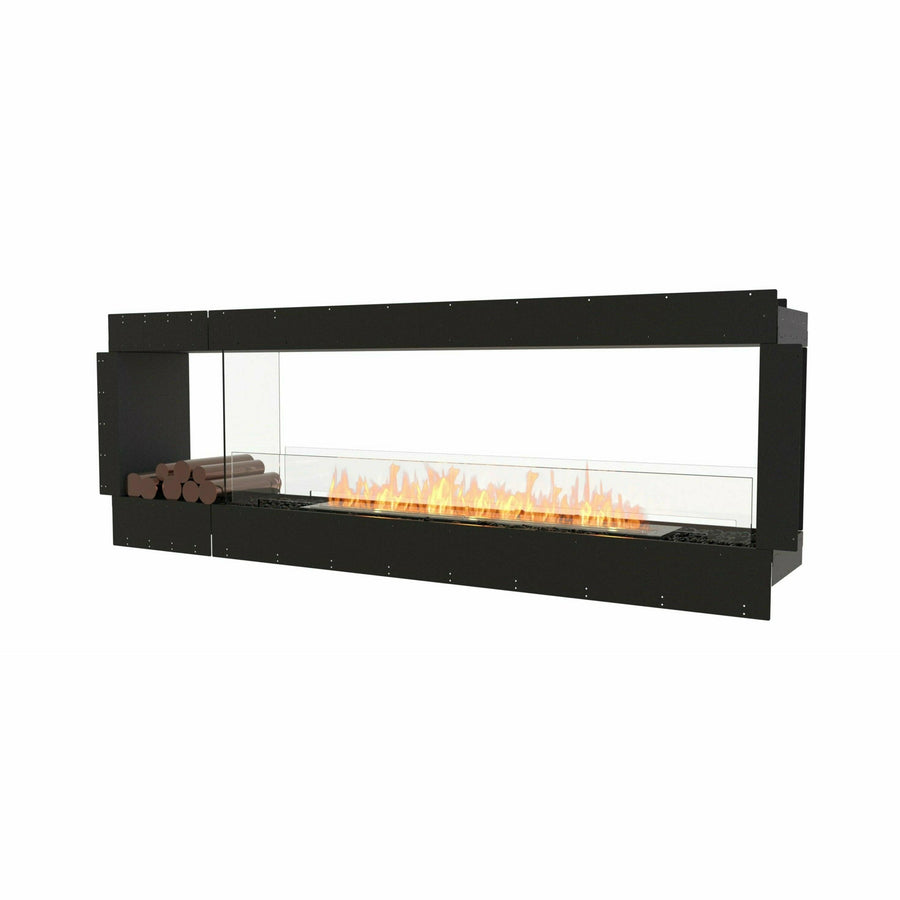

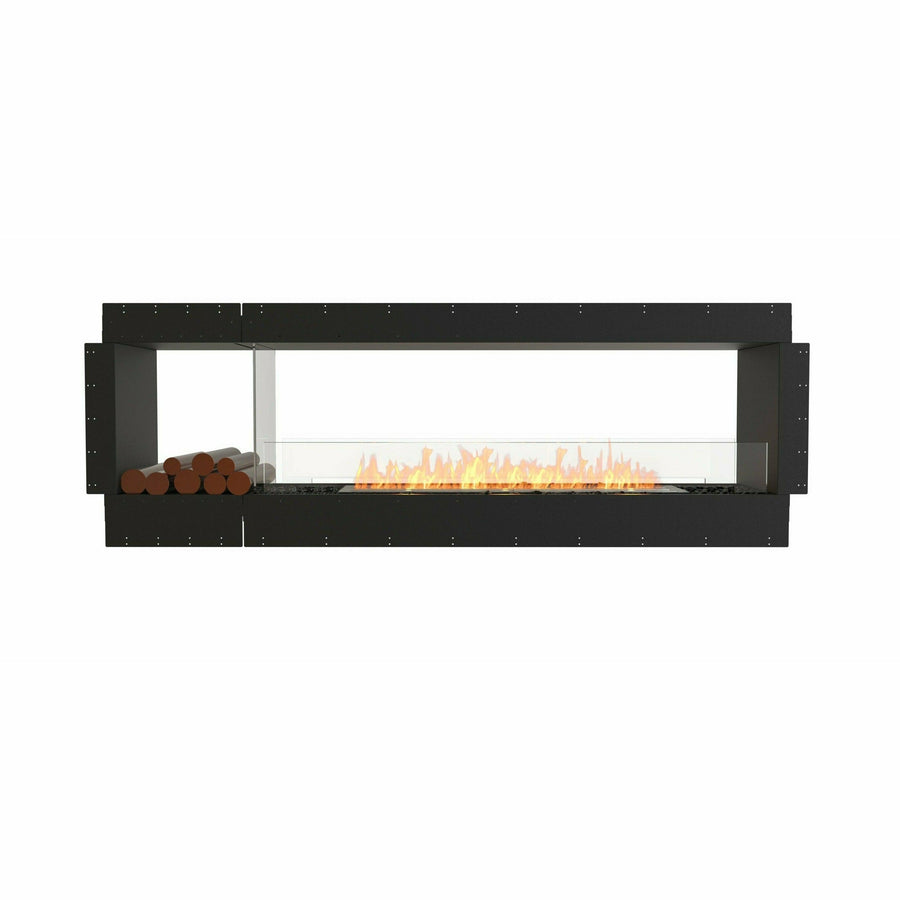

With an EcoSmart Flex 86DB.BX1, you have design freedom with the choice of a Decorative Box on the left or right-hand side. Both designs are fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

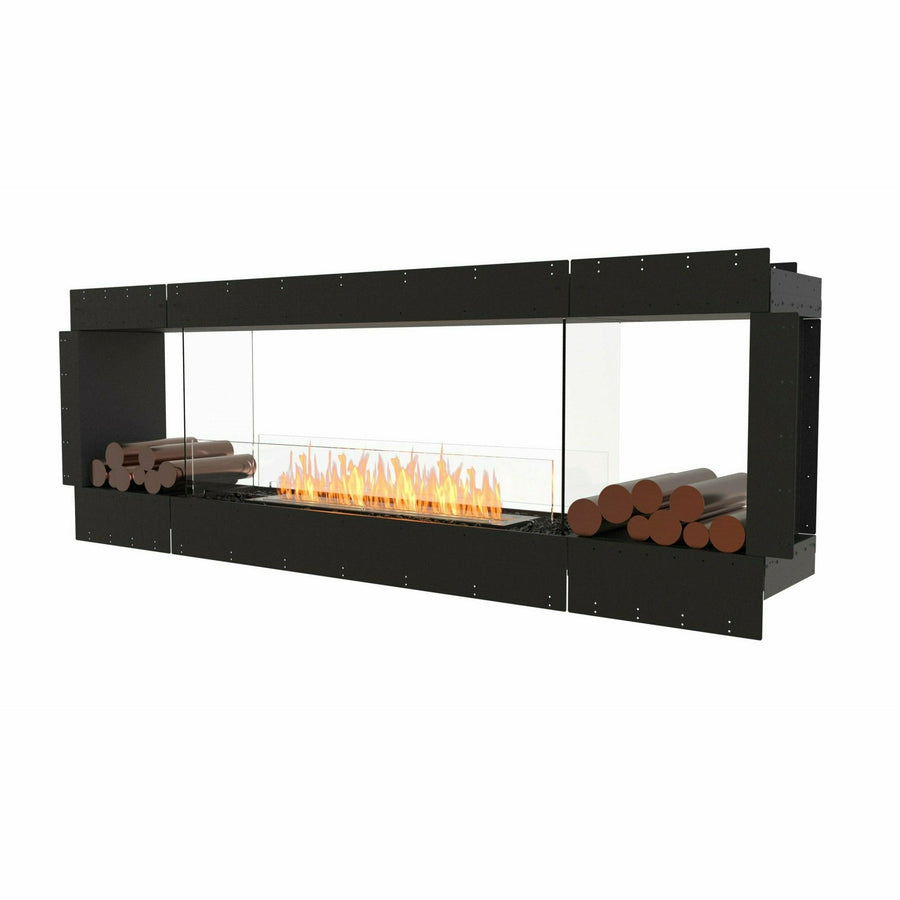

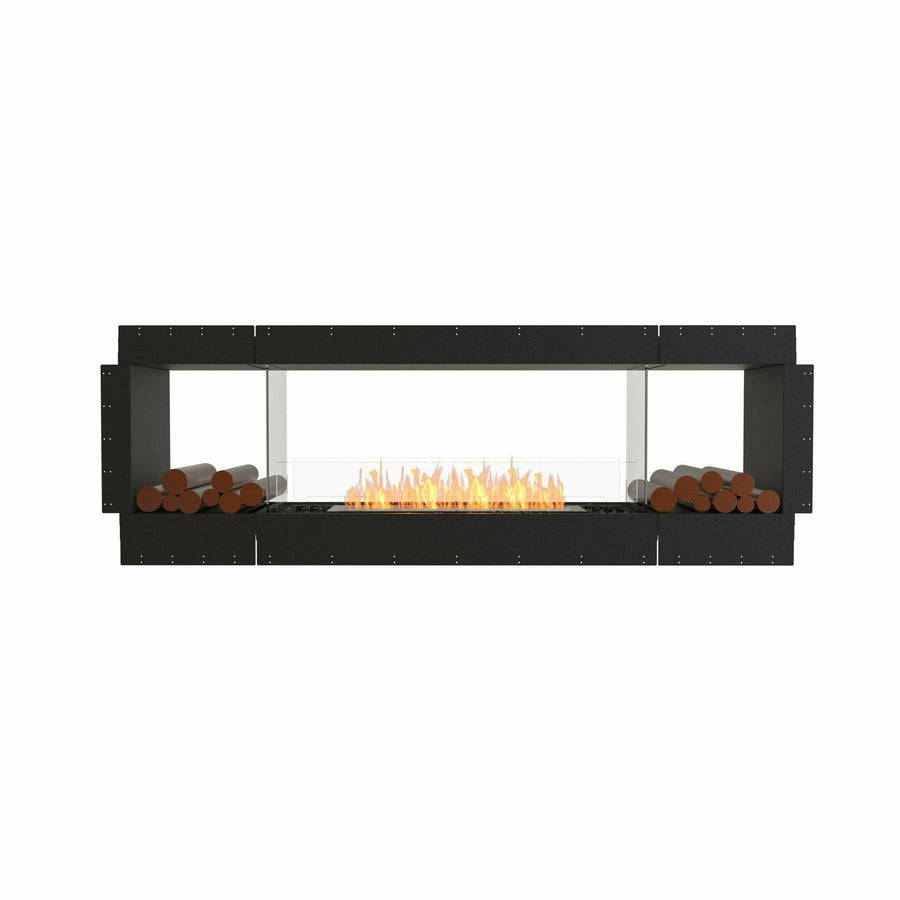

The Flex 86DB.BX2 includes a design that features Decorative Boxes on either side of the firebox. This 2 Box-design boasts an attractive visual symmetry while the glass panels that divide the Decorative Boxes and the Firebox create an uninterrupted, streamlined look.

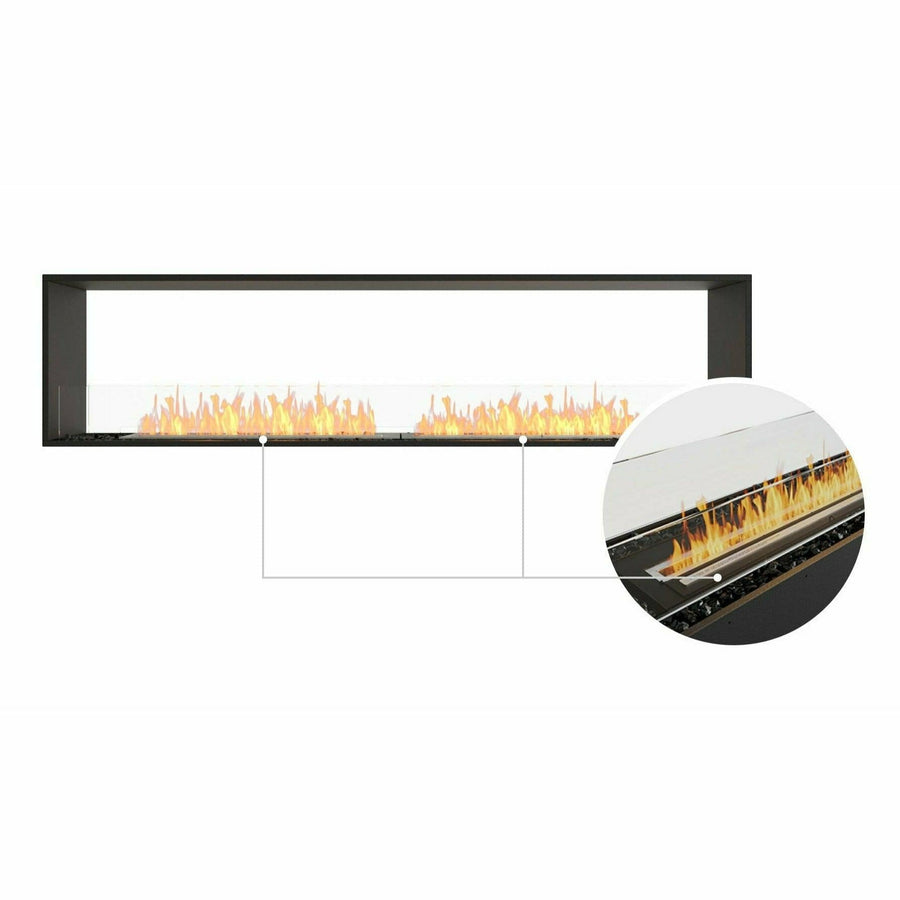

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 Burners. With an overall heating capacity of 1292ft2Â this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.
Each burner holds 2.4 gallons of fuel, and can deliver a stunning flame for up to 13 hours.
Included Accessories
- Bottle Adaptor
- XL Baffles
- Black Glass Charcoal
- Jerry Can 1.25 Gal
- Lighting Rod
- Fire Lighter
Â
Weight |
- 86DB - 226lb [102kg]
- 86DB.BX1 -Â 274lb [125kg]
- 86DB.BX2 -Â 239lb [109kg]
|
Model Dimensionsin [mm]
|
-
86DB- W 94.1 [2390]D 13.9 [354]H 31.8 [807]
- 86DB.BX1 -Â W 94.1 [2390]D 13.9 [354]H 31.8 [807]
- 86DB.BX2 -Â W 94.1 [2391]D 13.9 [354]H 31.8 [807]
|
Viewing Areain [mm]
|
-
86DB -Â W 86.2 [2190]D 13.9 [352]H 19.8 [502]
- 86DB.BX1 -Â W 86.2 [2190]D 13.9 [352]H 19.8 [502]
- 86DB.BX2 -Â W 86.3 [2191]D 13.9 [352]H 19.8 [502]
|
Materials |
Mild Steel & Toughened Glass |
Model Colour |
Black  |
Burner Colours |
Stainless Steel  Black Â
|
Â
Â
Capacity: |
4.8 Gal [18 L] |
Heats on Average: |
1292ft2Â [120m2] |
Minimum Room: |
7769ft3Â [220m3] |
Burn Time: |
8-13h |
Thermal Output: |
32 MJ/h - 30000 BTU/h - 8.8 kW |
Operating Costs: |
$1.50 - $3.50 / Hour |
Capacity: |
2.6 Gal [10 L] |
Heats on Average: |
700ft2Â [65m2] |
Minimum Room: |
4061ft3Â [115m3] |
Burn Time: |
9-14h |
Thermal Output: |
17 MJ/h - 15290 BTU/h - 4.5 kW |
Operating Costs: |
$1.50 - $3.50 / Hour |
Capacity: |
2.4 Gal [9 L] |
Heats on Average: |
646ft2Â [60m2] |
Minimum Room: |
3885ft3Â [110m3] |
Burn Time: |
8-13h |
Thermal Output: |
16 MJ/h - 15000 BTU/h - 4.4 kW |
Operating Costs: |
$1.50 - $3.50 / Hour |
